PANAVISE 300 Base

From the Manufacturer

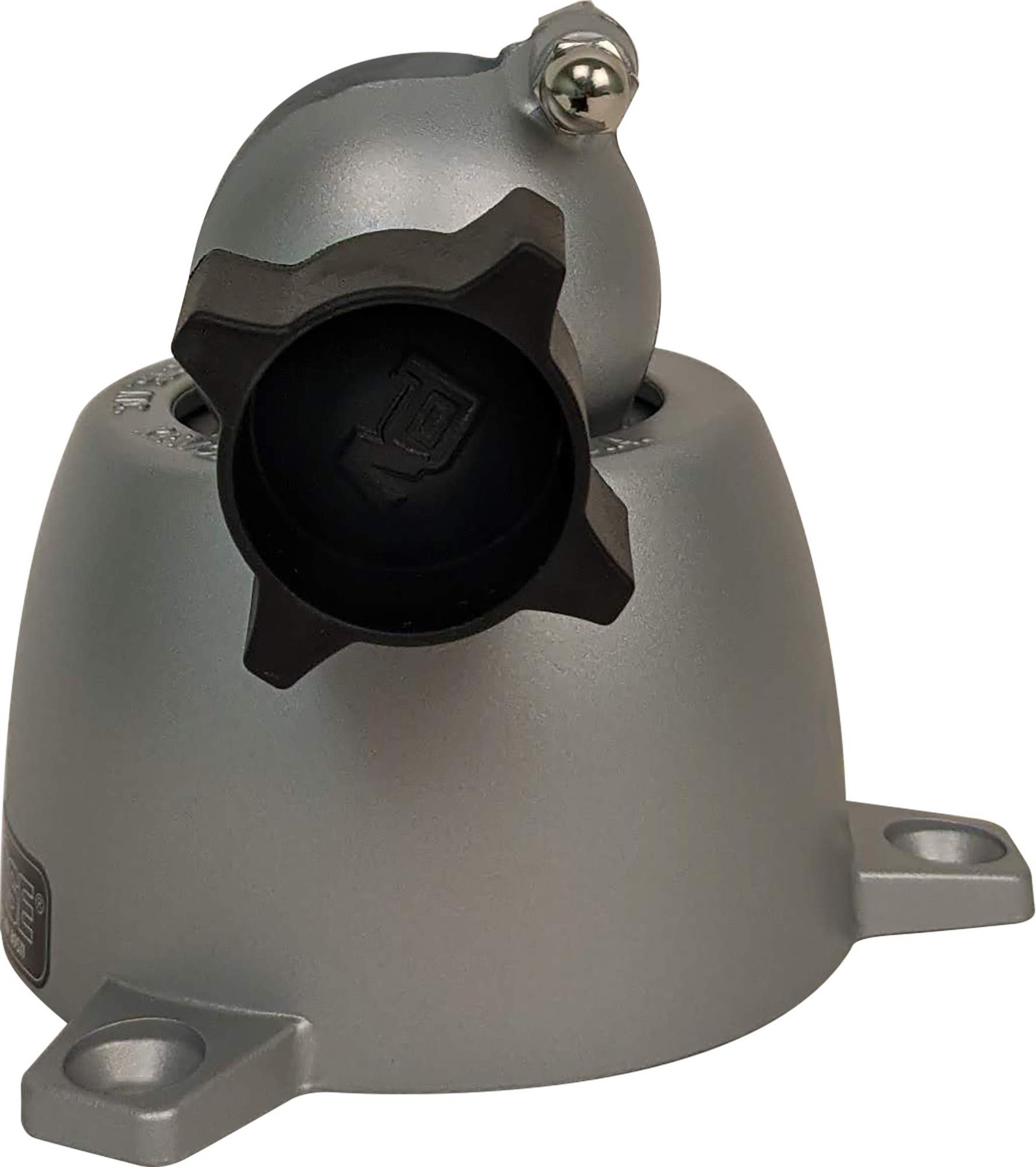

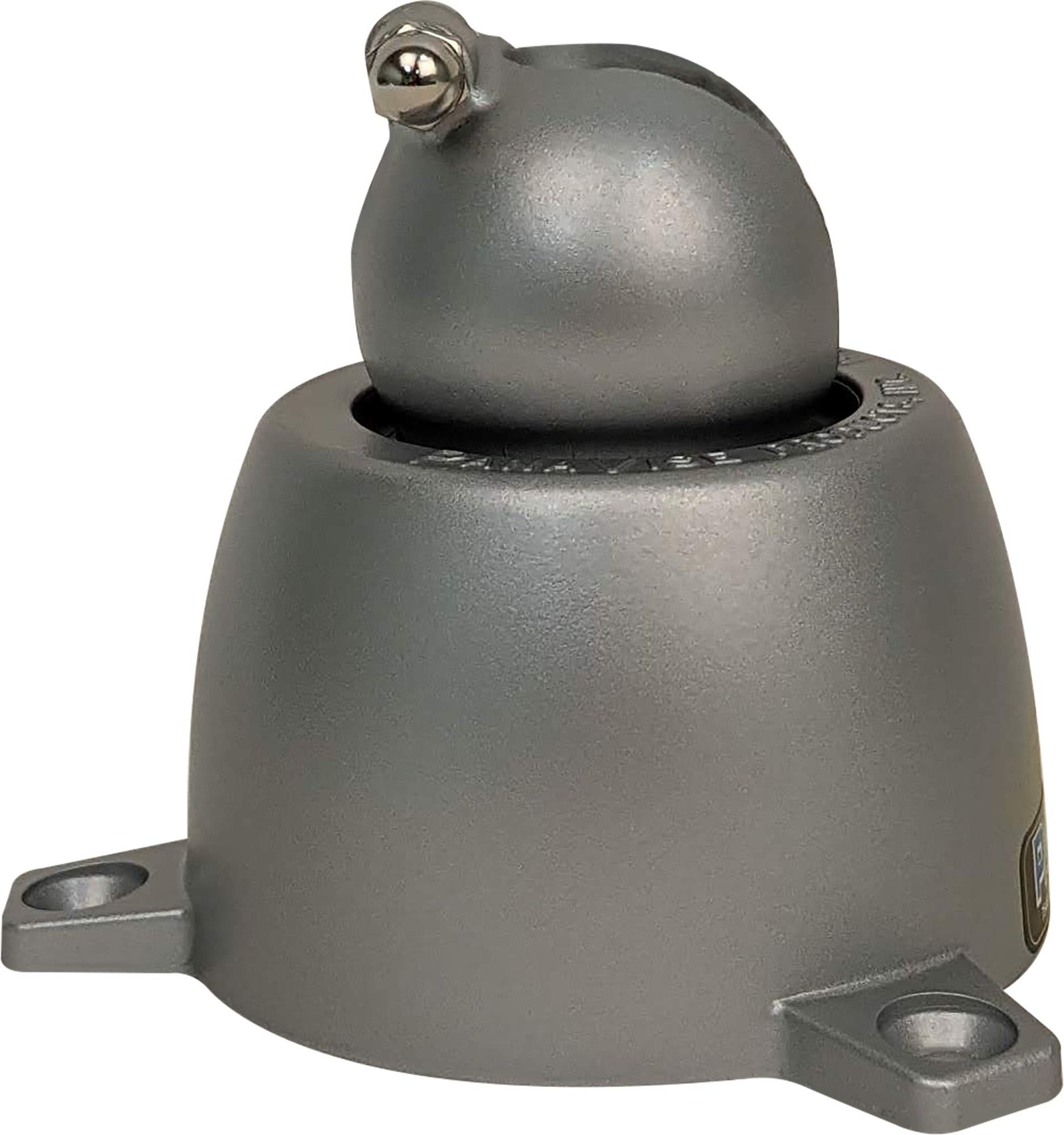

The PanaVise 300 standard base is a work-holding tool base designed for versatility. The PanaVise 300 standard base is compatible with all the heads in the PanaVise 300 series product line, as well as many accessories. This base utilizes a “split-ball” feature which allows for head movement through three separate planes (tilt, turn and rotate) controlled by a single-load control knob. It can be mounted with the 1/4″ (6.3 mm) countersunk screw holes in its bolt circle or can be used stand-alone. Low-profile base designed for vise applications close to bench surfaces.
View larger. Versatile Base to Build Your System On
The PanaVise 300 standard base is 3-3/4″ (95.2 mm) tall, weighs 1.4 lb. (0.6 kg) and has a base diameter of 4-5/16″ (109.5 mm). The base combines with one or more of PanaVise’s compatible heads (sold separately) to create a work-holding tool suitable for most any hobbies, electronic repair or assembly, or small home repairs. The bolt circle at the bottom of the base contains three pre-drilled holes that are countersunk for use with 1/4″ (6.3 mm) flat head screws (sold separately) to secure the base to a work surface. Alternatively, the 1.4 lb. (0.6 kg) weight of the 300 standard base makes it suitable for lighter work-holding tool applications where mounting of the base is not required or desired. Convenient adjustability across three separate planes
(vise head sold separately).
View larger. Compatible with all 300 series heads and many accessories (base mount sold separately).

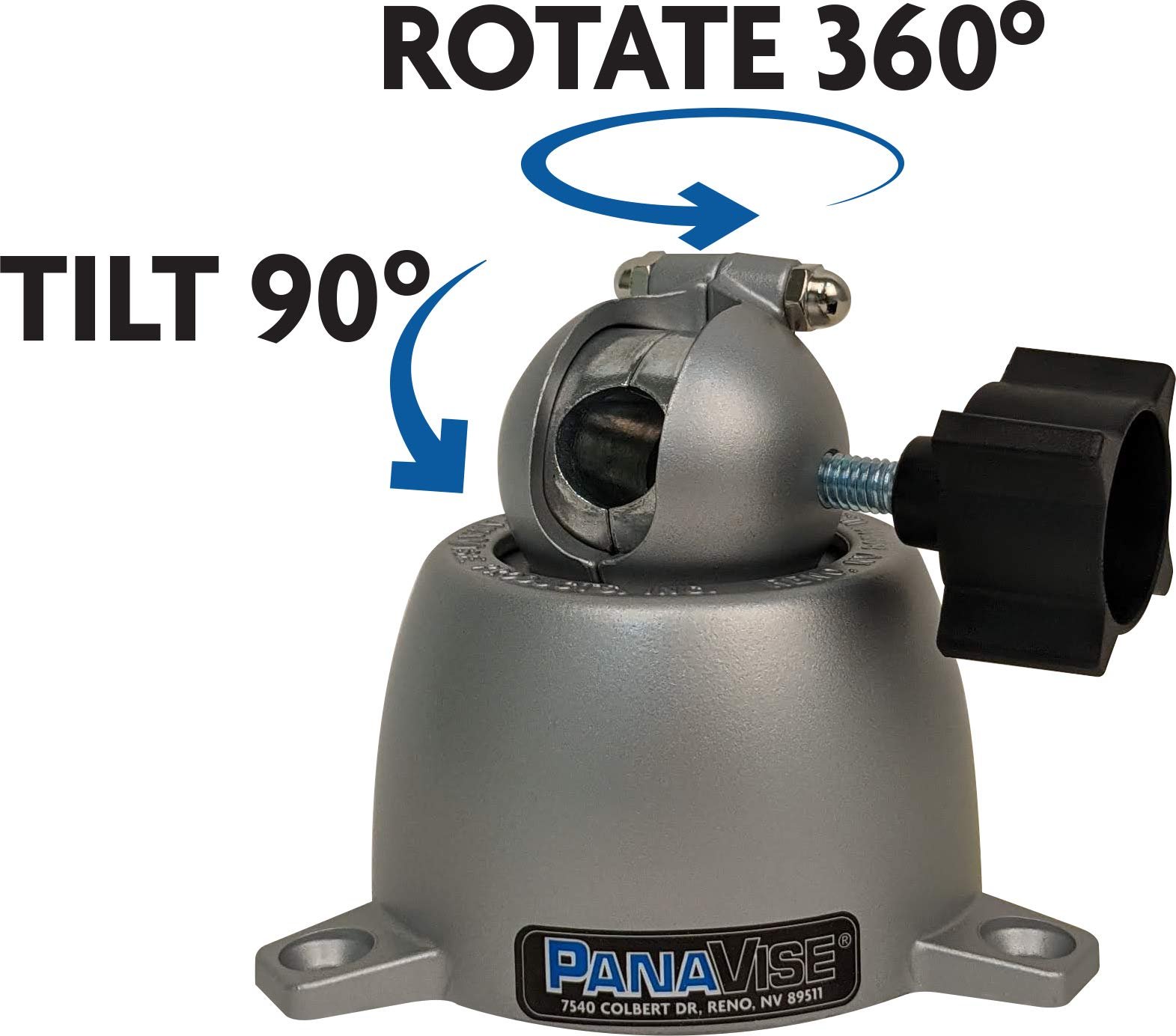

View larger. Tilt, Turn and Rotation Functionality

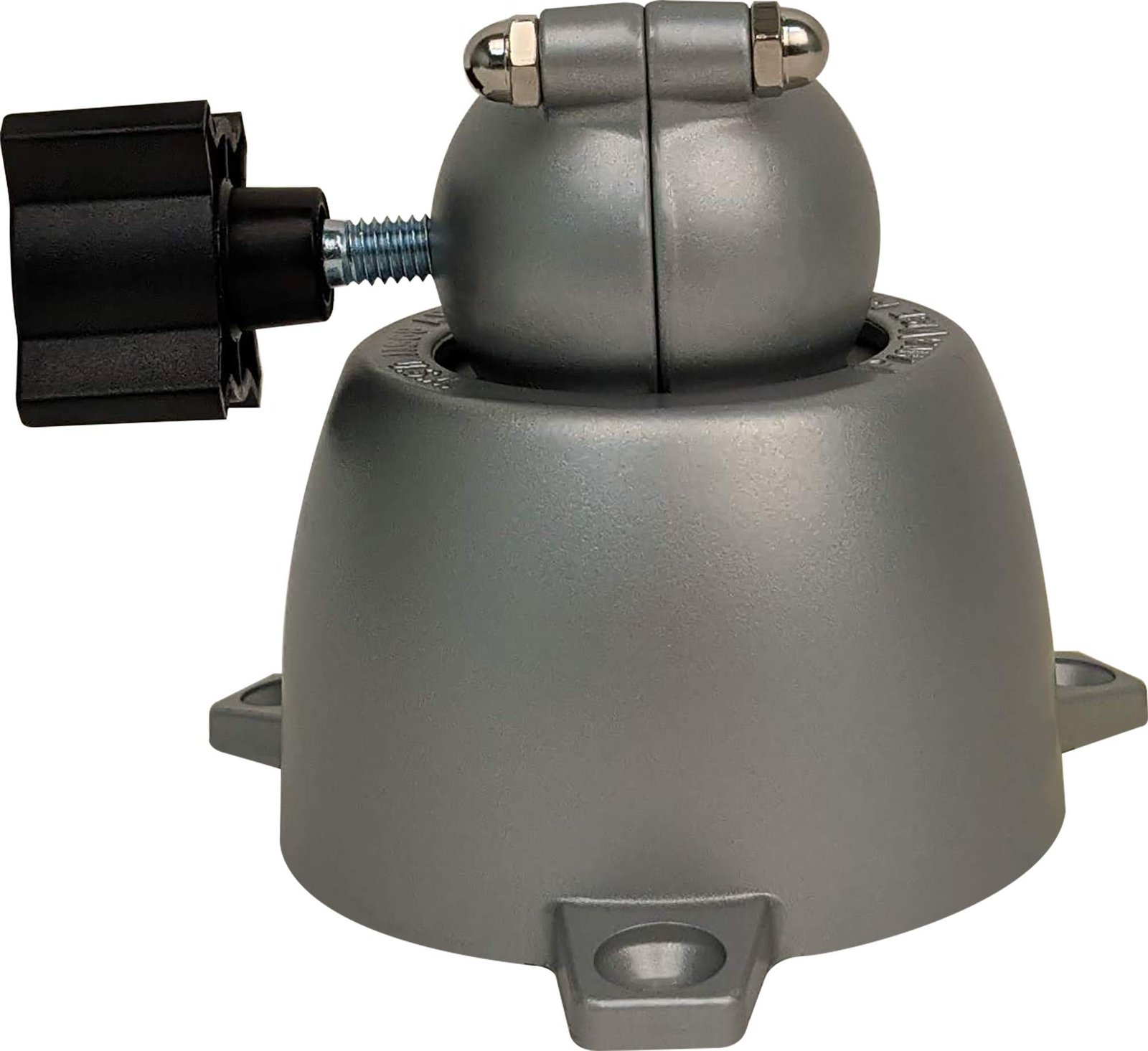

The 300 standard base utilizes PanaVise single-knob “split-ball” functionality at the point of contact with installed vise heads. Once a vise head is installed and an item is secured, the split-ball system allows for maneuvering the item along three separate planes. The mobility range of the model 300’s split-ball system is a 90-degree tilt to the side, along with either a rotation at a set angle or level turn range of 360 degrees. The mobility range allows a user to rearrange work items into virtually any position, limiting the need to adjust the overall position of the vise, or the item within the vise. Multiple Vise Head Options
The PanaVise 300 standard base is suitable for a variety of applications and is compatible with a range of vise heads. The base works with all PanaVise 300 series vise heads, as well as the PV Jr. model 203 head, or any head tool accessory with a 5/8″ diameter shaft. Key Features Versatile general purpose work-holding tool base suitable for small-to-medium-sized projects such as arts and crafts, model making, electronics, jewelry making, and home repairs “Split-ball” feature controls for head movement through three separate planes Single load control knob locks head firmly in place Compatible with all 300 series vise heads, or any tool with a 5/8″ diameter shaft (sold separately) Can be mounted to work bench or base mount with countersunk bolt circle Specifications Height: 3-3/4″ (95.2 mm) Weight: 1.4 lb. (0.6 kg) Diameter: 4-5/16″ (109.5 mm) 3-plane adjustability Rotation: 360 degrees Turn: 360 degrees Tilt: 90 degrees Shaft diameter accepted: 5/8″ (15.9 mm) Bolt circle countersunk for three 1/4″ flathead screws What’s in the Box? PanaVise 300 standard base User’s manual and warranty information Limited Lifetime Warranty
All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance. About PanaVise
Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the “the hold it anywhere you want it company.”

Product Description

PanaVise is a major manufacture of Vises and Work Holding Tools. PanaVise’s Tilt, Turn & Rotate technology has been applied to the product line, allowing for maximum efficiency and many different uses. Introducing the Panavise 300 STANDARD BASE, our most popular base! Accepts all 300 series Heads and the PV Jr. 203 Head or any 5/8″ (15.9mm) diam
